Beams



Features
Applications
  • Untensioned, corrugated safety barrier.

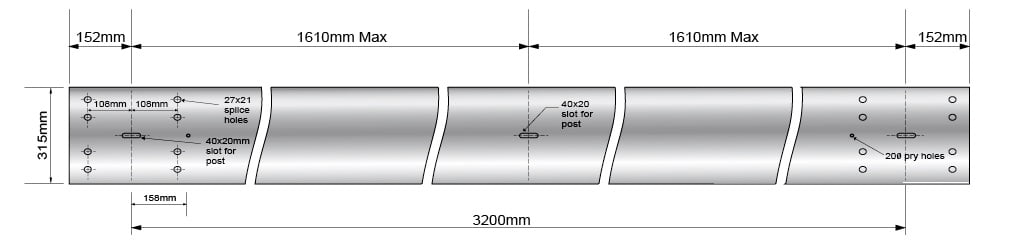

  • 3.5m overall length, effective length of 3.2m.
  • Joined using 8no M16 x 35mm lap bolt sets.
  • Joined to post using 1no M16 x 50 post bolt set.
  • All barriers should be assembled with the overlap in the direction of the traffic.
  • All beams have mid-span slots to enable additional posts to be installed for extra stability.
  • Industrial estates.
  • Car parks.
  • Warehouses.
  • Not to be used on highways.

Download Datasheet
