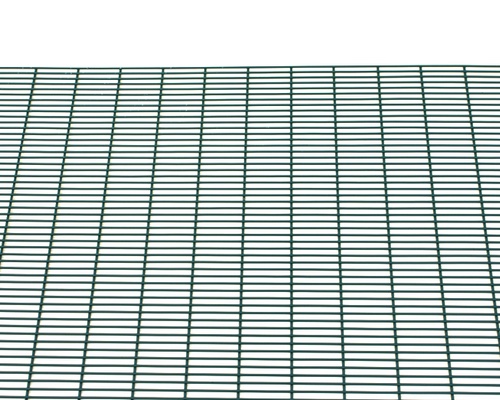

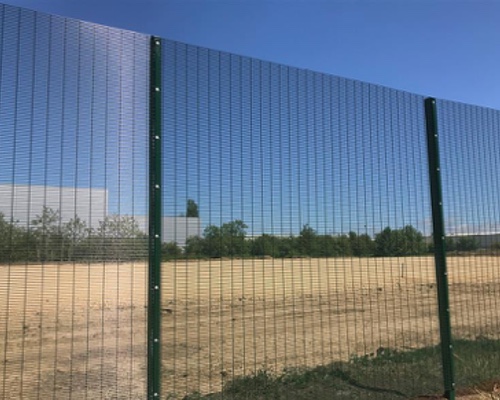

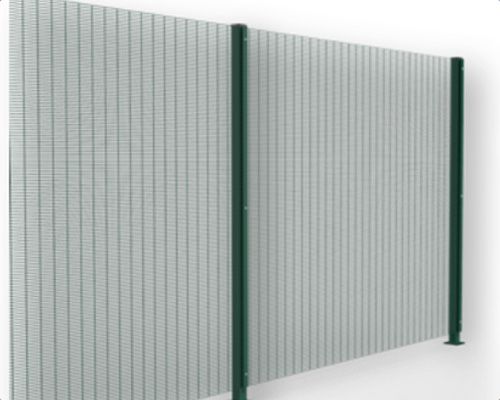

Cordguard 358 Prison Mesh panel system is our most secure fencing system thanks to the compact nature of the horizontal wires.
The small apetures 76.2mm x 12.4mm make it impossible to climb. The system is very popular where security is of paramount concern such as prisons, schools and commercial areas.
- High Density weld configuration provides a finger-proof, anti-climb barrier
- High delay factor
- Extremely difficult to cut using conventional wire cutters
- Excellent through visibility, due to 4.00mm* wire diameter & rectangular mesh configuration
- Compatible with most electronic alarm and detection systems
- Prisons and Secure Hospitals
- Military Installations
- Nuclear Installations
- Ports and Airports
- Border Fencing
- Commercial Sites
- Sports Stadiums / Pitches
| 358 Prison Mesh | |||||||
| Panels | Posts | ||||||
| Fence Height mm | Height x Width mm | Number of beams per panel | Section mm | Overall Length mm | Number of fixings | ||
| Intermediate | Corner | End | |||||
| 2000 | 2000×2515 | 0 (flat panel) | 60 x 60 x 1.5 | 2700 | 7 | 14 | 7 |
| 2400 | 2400×2515 | 0 (flat panel) | 60 x 60 x 1.5 | 3100 | 9 | 18 | 9 |
| 3000 | 3000×2515 | 0 (flat panel) | 60 x 60 x 1.5 | 3800 | 11 | 22 | 11 |
