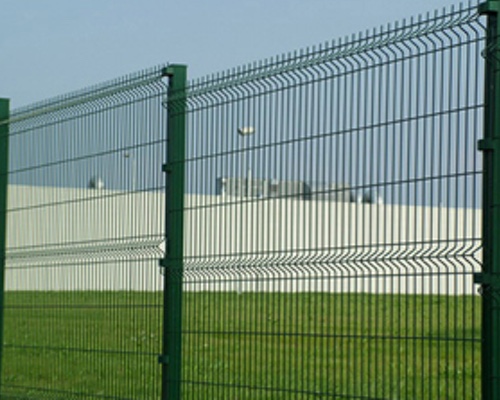

Cordguard V-mesh Fencing Panels Feature a V-shaped bend horizontally along the panels length to add extra strength and rigidity to the system.

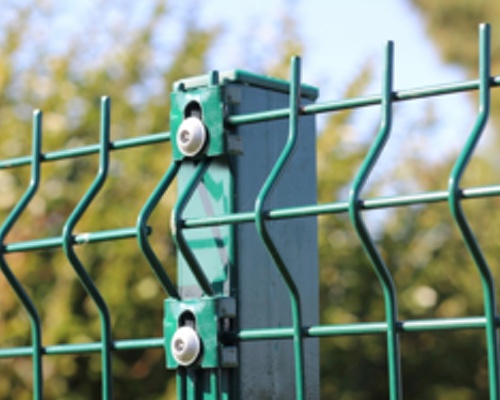

Combining a rigid V-mesh panel with a box section fence post, V-mesh fencing systems are a simple yet highly efficient style of security fencing.
- Horizontal “v” shaped beams give the panels extra rigidity
- Mesh apertures generally 200mm x 50mm (approximately 100mm x 50mm at the beam area)
- Non-standard panel designs are available (minimum production quantity required)
- Produced from Galvanised wire to BS EN 10244-2:2001 class D
- Range of heights available from 1230mm* – 2430mm*
- Panels are normally produced 3.00m wide (reducing installation & post costs by approx 20%, when compared with a 2.50m wide panel)
- Nominal panel heights, actual panel heights may vary with design
- Commercial Sites
- Ports, Stations and Airports
- Schools and Colleges
- Residential Areas
| Cordguard V-mesh | |||||||
| Panels | Posts | ||||||
| Fence Height mm | Height x Width mm | Number of beams per panel | Section mm | Overall Length mm | Number of fixings | ||
| Intermediate | Corner | End | |||||
| 1200 | 1230×3000 | 2 | 60 x 60 x 1.5 | 1800 | 4 | 8 | 4 |
| 1800 | 1730×3000 | 3 | 60 x 60 x 1.5 | 2400 | 5 | 10 | 5 |
| 2000 | 1930×3000 | 3 | 60 x 60 x 1.5 | 2700 | 6 | 12 | 6 |
| 2400 | 2430×3000 | 4 | 60 x 60 x 1.5 | 3100 | 7 | 14 | 7 |
